VLX 500 Single & Double Hung Window

VLX 500 Single & Double Hung Window in Miami Gardens, FL | Sightline Windows & Doors Miami Gardens

The VLX 500 Single & Double Hung Window is a classic vertical-glide aluminum hung window with tilt-in sashes for easy cleaning, built for homeowners in Miami Gardens who want durability without sacrificing clean sightlines. We install this ViewLux series as an authorized partner, which means your warranty stays intact and every unit meets factory specifications. In Miami Gardens, where salt air, afternoon thunderstorms, and the occasional tropical system test everything on your home, aluminum hung windows need to be more than good-looking. They need to perform. The VLX 500 does. Call (754) 354-6649 to schedule your free on-site measurement and written estimate.

Call (754) 354-6649

Product Overview - VLX 500 Single & Double Hung Window

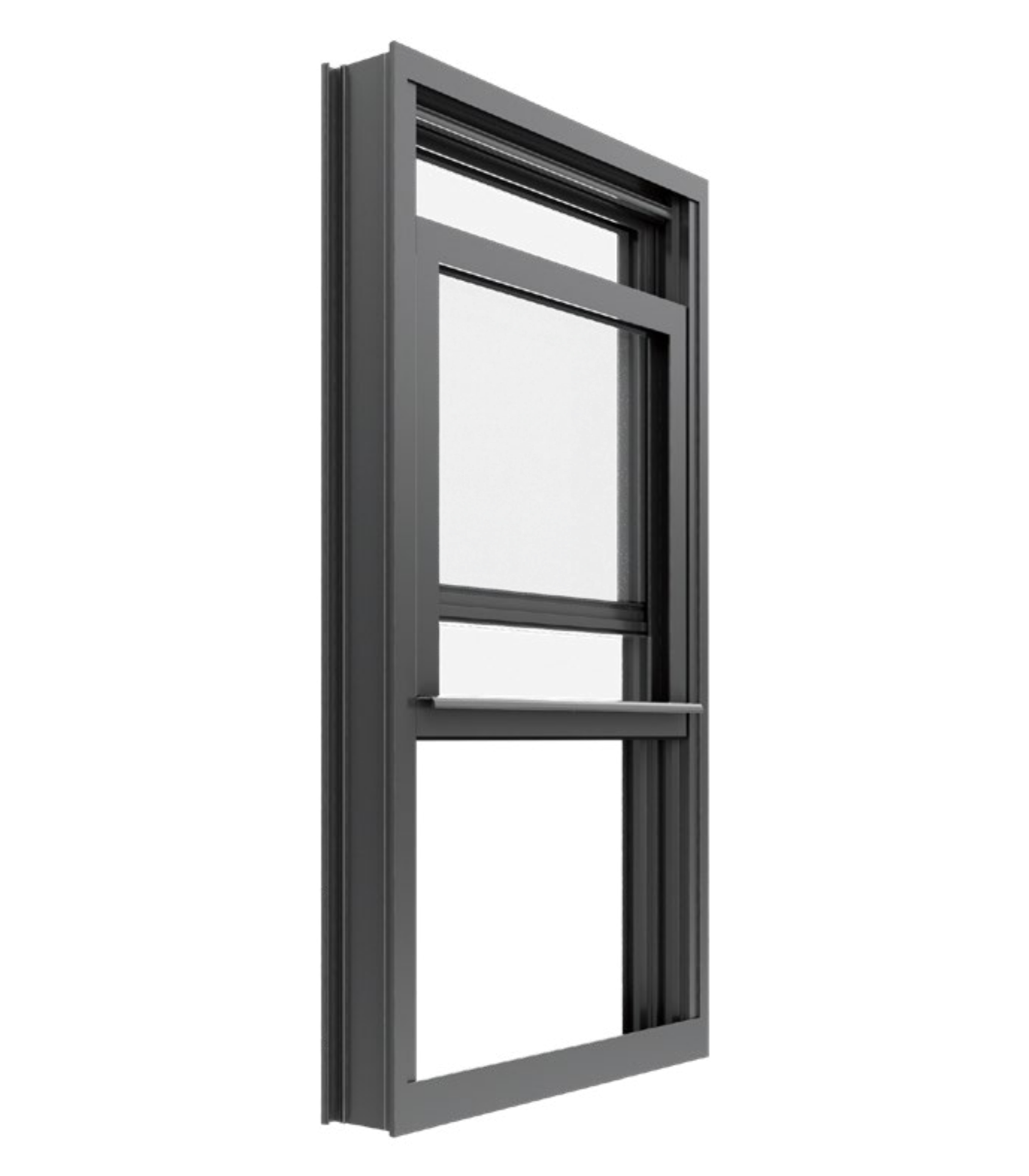

The VLX 500 is built around a simple idea: a window that opens and closes smoothly for decades, cleans from inside the house, and never fights the climate it’s installed in. This is a single and double hung configuration, meaning both sashes slide vertically in the same plane. On double hung units, both top and bottom sashes move; on single hung, the top sash stays fixed while the bottom sash operates. Either way, the tilt-in feature lets you release the sash, angle it inward, and wipe both sides of the glass while standing in your living room. No ladder, no hose, no second person spotting you on a step stool.

Architecturally, the VLX 500 fits where traditional proportions matter. The 2.36-inch profile width gives you a frame that’s substantial enough to feel solid but slim enough to maximize glass area. That matters in Miami Gardens homes, where natural light is an asset you don’t want to give up to bulky vinyl frames. The aluminum construction resists the humidity and salt that degrade other materials. We’ve installed these in ranch-style homes near Hard Rock Stadium, in renovated mid-century properties along NW 27th Avenue, and in newer construction throughout the Miami Gardens area. The finish holds up. The hardware keeps working. The sashes still glide after years of daily use.

Buyers choose this series when they want low maintenance, long service life, and the clean vertical lines that hung windows provide. The 0.079-inch wall thickness is heavier than economy-grade aluminum windows, so you don’t get the flex or rattle that cheap frames develop. ViewLux engineered this as a permanent-installation product, not a builder-grade placeholder.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

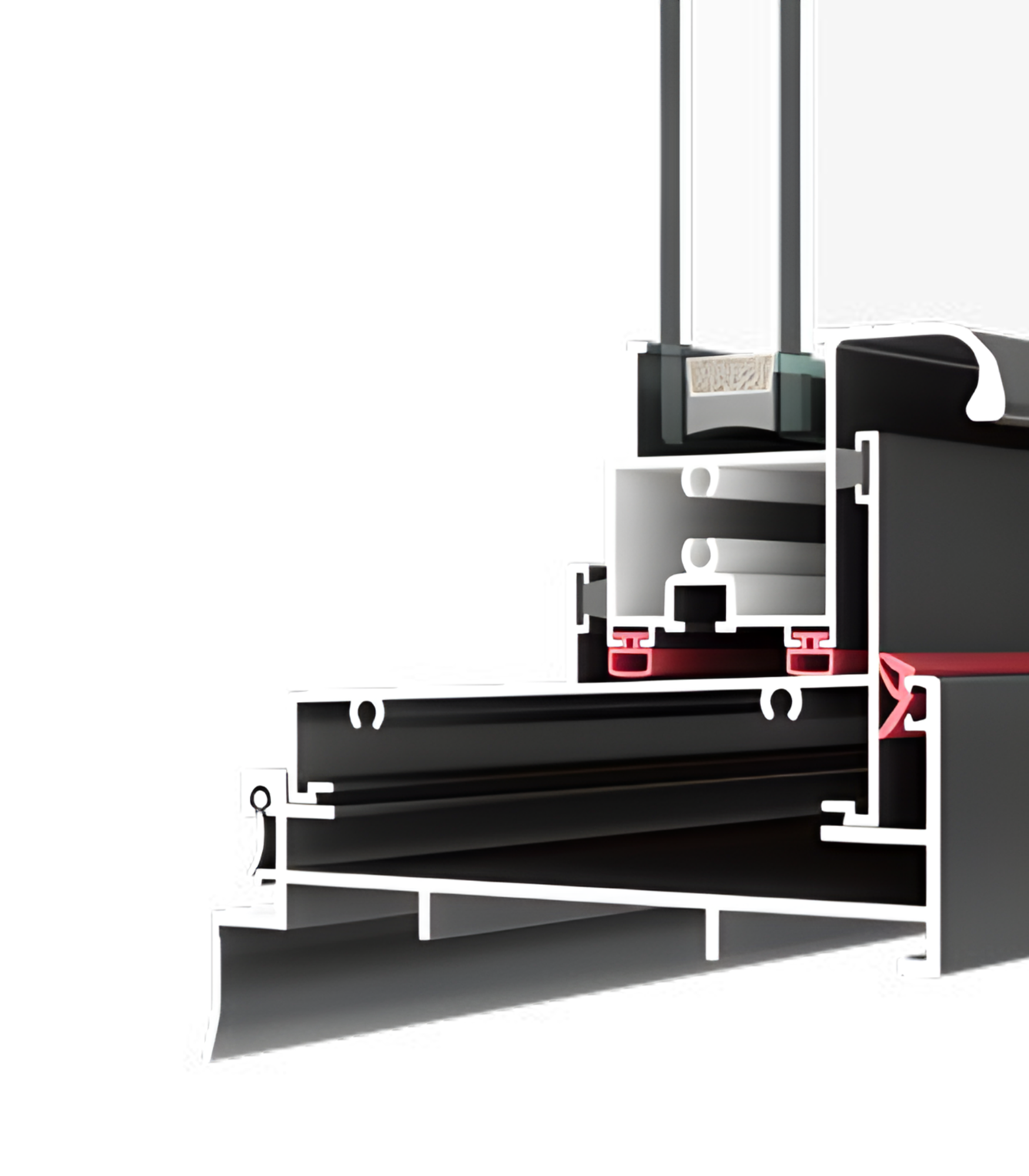

The VLX 500 uses thermal break technology to separate interior and exterior aluminum surfaces, cutting conductive heat transfer. NFRC-rated energy performance means the numbers are verified, not claimed. In Miami Gardens, where summer cooling loads dominate your electric bill, this matters. The thermal break plus Low-E glass options help keep conditioned air inside where you pay for it.

Acoustic Performance
Laminated glass and proper frame sealing reduce exterior noise transmission. We’ve measured noticeable improvement in homes near I-95, the Palmetto Expressway, and busy corridors like NW 183rd Street. The frame design and weatherstrip compression work together; it’s not just the glass doing the job.

Airtightness & Weather Seal
Multiple compression seals at the sash meeting rail and frame perimeter stop air infiltration. The AAMA 812 low-expansion foam sealant we apply at installation fills every gap between frame and rough opening. No whistling on windy days. No dust trails on the sill after a storm.

Waterproofing
Sill design, weep systems, and perimeter sealing are tested to AAMA standards for water penetration resistance. Miami Gardens gets serious rain, often driven horizontally by summer thunderstorms. The VLX 500’s drainage path and seal geometry handle it. We verify with a water test after every installation.

Wind Resistance
The 0.079-inch wall thickness and reinforced corners give the frame structural integrity under load. Wind-load ratings meet local requirements for Miami-Dade County’s high-velocity hurricane zone. For homes needing code-compliant impact protection, the laminated glass option satisfies Florida Building Code requirements without unsightly shutters or aftermarket film.

Security & Hardware
Multi-point locking hardware engages at the sash meeting rail, with positive latching that you can feel. Tempered and laminated glass options add break resistance. The tilt-in mechanism releases only when the sash is properly unlocked and lifted, so it doesn’t compromise security for convenience.

Color & Glass Options

Finishes

• Premium Black - Works on modern facades and as contrast trim on white or stucco exteriors. Very popular in newer Miami Gardens construction.
• Pure White - The safe choice that brightens interiors and matches most existing trim. Still our most-requested color in the area.
• Anodized Silver - Industrial, honest, low-maintenance. Good for contemporary homes and commercial-look residential projects.
• Bronze - Warm without being trendy. Suits traditional architecture and blends with terracotta roof tiles common in South Florida.
• Champagne - Subtle metallic warmth that complements beige and cream stucco without the harshness of raw aluminum.
• Teak Wood - Wood-grain finish for homes where natural materials are part of the design language. No maintenance, no rot, no termites.

Glass Selections

• Clear - Maximum light transmission, lowest cost. Fine for shaded exposures.
• Frosted - Privacy without blinds, ideal for bathrooms and side yards close to property lines.
• Low-E - Reflects infrared heat, cuts UV fading. Recommended for west and south exposures in Miami Gardens.
• Tempered - Safety glass that shatters into small granules. Required by code near doors, in bathrooms, and for large lites.
• Laminated - Impact-resistant, sound-reducing, security-enhancing. The choice for hurricane protection and noise complaints.

Screen choice depends on how you use the window. Half-screen covers the operable sash only, leaving more clear view through the fixed portion. Full screen covers the entire opening, better for insect control when both sashes might open.

Installation by Sightline Windows & Doors Miami Gardens in Miami Gardens

We don’t drop off windows and hope for the best. Our installation process protects your investment and preserves your ViewLux warranty, which requires authorized installation to remain valid.

Every project starts with a pre-install inspection. We measure each opening, check for square, and identify structural issues that need addressing before the window arrives. In Miami Gardens, we often find settling in older homes near the original developments, or water damage in sills from previous leaks. We fix it first. Installing over rot or out-of-plumb framing guarantees callbacks.

Setting the unit is done with shims, not guesswork. Level, plumb, square. The frame has to sit right or the sashes won’t glide properly, the locks won’t align, and the seals won’t compress evenly. We’ve reinstalled windows done by handymen who skipped this step. The sashes drag. The weatherstrip wears unevenly. The homeowner calls us to fix it.

Perimeter sealing follows AAMA 812 standards with low-expansion foam sealant. This fills the gap between window frame and rough opening without distorting the frame as it cures. We then apply appropriate exterior sealant at the head and jambs, with sill pan flashing that directs any incidental water to the exterior. The AAMA 2400/2410 installation standards aren’t suggestions; they’re the protocol that keeps water out of your walls.

Final step is a water test and operational check. Every sash opens, closes, tilts, and locks. We clean the glass and the site. You get a walkthrough.

Miami Gardens-specific considerations: Our permit process follows Miami-Dade County requirements. Impact-rated installations need appropriate documentation. We handle that. The salt air means we never use fasteners or hardware that will corrode. And we schedule around the weather, because installing in a thunderstorm doesn’t do anyone any favors.

Frequently Asked Questions - VLX 500 Single & Double Hung Window

What is the lead time for the VLX 500 Single & Double Hung Window?
Lead time typically runs 4-6 weeks from signed approval to delivery, depending on finish and glass selections. Custom sizes or impact-rated laminated glass may extend this slightly. Call (754) 354-6649 to check current availability and reserve your production slot.

Does the VLX 500 qualify for energy tax credits?
The VLX 500 with Low-E glass and thermal break construction meets NFRC performance criteria that may qualify for federal energy efficiency tax credits depending on the tax year and your specific installation. We provide the NFRC label documentation you need to claim any available credits. For current program details, consult your tax preparer. Call (754) 354-6649 and we’ll explain what documentation we supply.

What warranty comes with the Single & Double Hung Window?
ViewLux provides a limited lifetime warranty on the frame and sash, with 20-year glass coverage and 10-year hardware coverage, contingent on authorized installation by a partner like Sightline Windows & Doors Miami Gardens. DIY or unqualified installation voids protection. We register your warranty and provide all paperwork. Call (754) 354-6649 for complete terms.

Can I customize the size?
Yes, the VLX 500 is available in custom dimensions to fit existing openings or new construction plans in Miami Gardens. We measure on-site, confirm rough opening requirements, and factory-order to specification. Standard sizes are available faster; custom sizes take the full lead time. Call (754) 354-6649 to schedule measurement.

How do I maintain aluminum frames?
Wash frames with mild soap and water twice yearly, check weep holes for debris after storms, and lubricate hardware annually with a silicone-based product. The powdercoat finish doesn’t need repainting. Avoid abrasive cleaners or pressure washers directed at seals. The tilt-in sashes make glass cleaning simple from inside. Call (754) 354-6649 if you notice operation changes; we service what we install.

Get a Quote - VLX 500 Single & Double Hung Window in Miami Gardens

Ready to see the VLX 500 in your home? We’ll bring samples, measure your openings, and deliver a written line-item quote with no pressure and no obligation. Every project starts with a conversation. Call (754) 354-6649 or stop by to schedule your free on-site consultation with Sightline Windows & Doors Miami Gardens. We’ve served Miami Gardens since day one, and we’re here when you’re ready to start.

Written by the team at Sightline Windows & Doors Miami Gardens, serving Miami Gardens since opening.
